Wheelchair Lift Weight Capacity

Choosing a wheelchair lift comes down to one question above all others: will it safely hold the rider and their mobility device? A lift that looks similar to another model on paper can have a very different weight rating once the wheelchair, the passenger, and any attached equipment are added together.

Weight capacity isn’t just a spec sheet number. It’s tied to federal design standards, the type of lift, and how the manufacturer builds in a safety margin. The Centers for Disease Control and Prevention estimates that more than 5.5 million adults in the United States use a wheelchair or scooter, and many rely on a lift to get in and out of a vehicle, a home, or a public building safely.

This guide breaks down what weight capacity actually means, the regulations that set minimum standards, and how capacity differs by lift type so that buyers can match a lift to their needs.

---

Wheelchair Lift Weight Capacity Explained

“Weight capacity” refers to the total load a lift is designed to carry safely, not just the heaviest single component. Manufacturers test each lift to a rated capacity, then build in an additional margin, called a safety factor, so the lift doesn’t fail the moment it hits that number.

Total load includes more than the rider. It covers the wheelchair or scooter itself, the passenger and any attached equipment, such as a ventilator, oxygen tank, or shopping bags hung on the back of the chair. A lift rated for 600 pounds needs to comfortably cover all of that combined weight, not just the passenger.

Rated Capacity vs. Design Load

Rated capacity is the maximum combined weight a manufacturer certifies the lift to carry under normal use. Design load is a related but distinct engineering term: it’s the load the lift’s structure and moving parts are built to withstand, factoring in wear over time. A lift’s design load is often the baseline from which the rated capacity is built.

Total Load: User Plus Device

Buyers sometimes focus only on the passenger’s weight and forget the mobility device itself. Power wheelchairs can weigh well over 300 pounds, and heavier models exceed 400 pounds before a passenger even boards. Adding the chair’s weight to the rider’s weight, plus any mounted equipment, gives the true total load that must fit under the lift’s rated capacity.

Why Safety Factors Matter

A safety factor is the cushion built between a lift’s rated capacity and the point at which its components would actually fail. Working parts like cables and pulleys wear down over years of use, so they carry a larger safety margin than fixed structural pieces like the platform frame. That margin is why a 600-pound-rated lift isn’t likely to fail right at 601 pounds.

Key terms to know when comparing lifts:

• Design load: The minimum load a lift’s structure must be engineered to support
• Rated capacity: The manufacturer’s certified maximum combined weight for normal use
• Safety factor: The engineered margin between rated capacity and actual failure point
• Total load: The combined weight of the wheelchair, rider, and any attached equipment
• Platform size: The usable platform surface area of the lift, which affects which devices fit
• Duty cycle: How often a lift can be used within a given period without overheating or excess wear
• Power source: Electric, hydraulic, or battery-powered lift systems that raise and lower the platform
• Mounting type: Whether a lift attaches under a vehicle, inside it, or to a building structure

---

Wheelchair Lift Weight Capacity Requirements

Federal law sets a weight-capacity floor for wheelchair lifts used in public transit, and those standards often shape residential and commercial products as well.

ADA DOT Minimum Lift Capacity

The U.S. Department of Transportation’s ADA accessibility rule, 49 C.F.R. § 38.23(b)(1), requires that transit vehicle lifts have a design load of at least 600 pounds. Working parts such as cables, pulleys, and shafts must have a safety factor of at least six times the design load, while nonworking parts like the platform and frame need a safety factor of at least three times. In practice, a lift built to the 600-pound minimum shouldn’t approach structural failure until the load nears 1,800 pounds.

Ramp Design Load Thresholds

Ramps follow a separate but related standard. Under the same regulation, ramps measuring 30 inches or longer must support a 600-pound load with a safety factor of at least three, while ramps shorter than 30 inches only need to support 300 pounds. The distinction matters for buyers comparing a short entry ramp against a full-length boarding ramp.

Standard or Regulation	Minimum Design Load	Safety Factor Requirement	Notes
ADA DOT lift requirement	600 lbs	6x for working parts, 3x for nonworking parts	Applies to transit vehicle lifts under 49 C.F.R. § 38.23(b)
Ramp 30 inches or longer	600 lbs	3x	Load applied over a 26-inch by 26-inch test area
Ramp shorter than 30 inches	300 lbs	3x	Lower threshold reflects shorter unsupported span
Common industry ratings	550 to 1,400 lbs	Varies by manufacturer	Residential and commercial lifts often exceed the federal minimum

When Higher Capacities Are Needed

Transit agencies can choose lifts rated above the 600-pound minimum, though they aren’t required to accommodate a wheelchair and passenger that exceed a lift’s rated capacity. Buyers who use heavier power wheelchairs, carry additional equipment, or expect to upgrade to a larger device down the road should look for a lift rated well above the legal floor rather than one built to the bare minimum.

---

Wheelchair Lift Capacity By Lift Type

Weight capacity varies significantly depending on the lift’s design and where it’s installed.

Vehicle lifts split into single-arm and dual-arm models. Single-arm lifts are common in side-entry applications, take up less interior space, and are commonly rated to 600 pounds. Dual-arm lifts add stability and are commonly rated up to 800 pounds, though they take up more interior room.

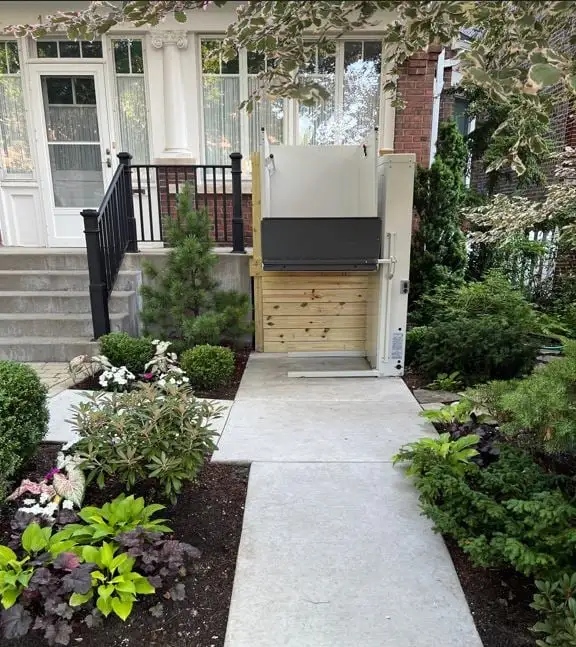

Mounting location also affects capacity. Under-vehicle mounted lifts typically offer higher capacity than internally mounted models, since they don’t compete for interior cabin space. Vertical platform lifts, used mainly in homes and commercial buildings, cover the widest range: standard residential models are commonly rated between 550 and 750 pounds. In comparison, heavy-duty commercial units can reach 1,050 to 1,400 pounds.

Lift Type	Typical Capacity Range	Pros	Cons	Best For
Single-arm vehicle lift	600 lbs	Compact, keeps entry clear	Lower capacity than dual-arm	Side-entry wheelchair accessible vans with lighter mobility devices
Dual-arm vehicle lift	Up to 800 lbs	More stable, higher capacity	Uses more interior space	Rear-entry wheelchair accessible vans and heavier power chairs
Under-vehicle mounted lift	Varies, often higher	Preserves interior cabin space	More complex installation	Vehicles needing full interior access
Internally mounted lift	Varies, often lower	Simpler installation	Reduces usable cabin space	Lighter-duty applications
Vertical platform lift	550 to 1,400 lbs	Wide capacity range, indoor or outdoor user	Requires dedicated floor space	Home entrances and commercial buildings

---

Choosing the Right Lift Capacity

Sizing a lift correctly takes more than checking a rider’s weight against a spec sheet.

1. Weigh the mobility device on its own, since power wheelchairs and scooters can weigh 100 to 400-plus pounds.
2. Estimate the passenger’s weight honestly, including seasonal clothing if the lift is used outdoors.
3. Add any accessories or cargo regularly carried on the chair, such as oxygen tanks or bags.
4. Build in a safety buffer above the calculated total load rather than sizing a lift to the exact combined weight.
5. Confirm the manufacturer’s rated capacity, not just the lift’s design load, before purchasing.
6. Check vehicle or structural weight limits where the lift will be installed, since the lift’s rating alone doesn’t guarantee the vehicle or deck can support the load.
7. Plan for future mobility devices, especially if a rider may transition to a heavier power wheelchair later.

---
